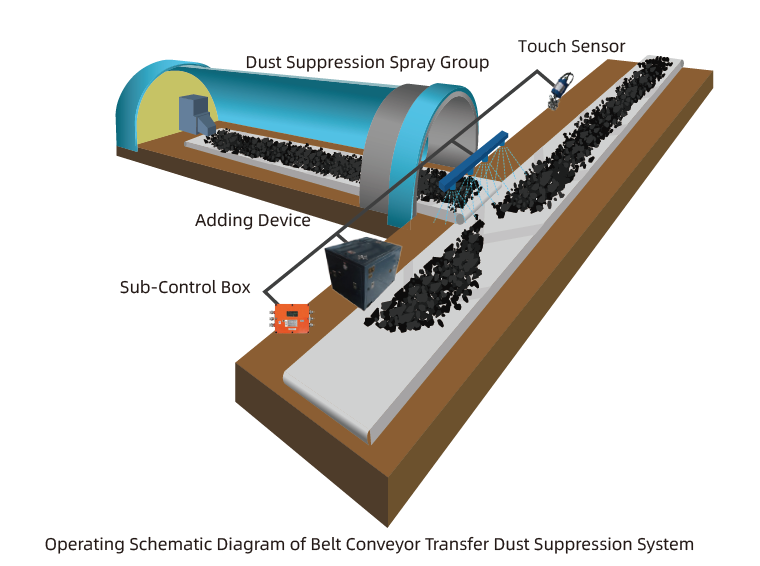

System Overview
When coal flow passes through the coal conveying belt, the touch sensor detects the coal flow rate and sends a signal to the sub-control box, which controls the electric valve to turn on the spray device and continuously sprays the transfer point for dust suppression.
The belt conveyor transfer dust suppression can be used as an independent system or connected to the centralized control software platform. The ground software can monitor the spray status of the dust suppression system in real time, and the start/stop of the spray in the dust suppression system can also be remotely controlled from the ground upper computer to achieve remote monitoring.

System Composition
The belt conveyor transfer dust suppression is mainly composed of a sub-control box, a touch sensor, a spray assembly and a supporting dust suppression cover.

System Features
(1) Automatically starts/stops spraying by sensing coal flow to achieve linkage dust suppression;
(2) Can operate independently with stable and reliable local control;
(3) Supports networking, remote monitoring of start/stop, and convenient centralized management.
